Medically Reviewed USG for Kidney Stones: Size, Location, and Treatment Path
Flank pain that wakes you at night, blood in the urine with no explanation, or a routine check that flags something unusual- these moments are genuinely unsettling. For most patients, a kidney ultrasound is the first test ordered, and the first moment a problem becomes real. India carries the second-highest burden of kidney stone disease globally, with 18.6 million cases in 2021, yet most patients arrive without knowing what the scan actually measures.
In this blog, we break down exactly what a renal USG shows, what normal measurements look like, where it has limits, and how findings shape treatment.
Key Takeaways
- A kidney ultrasound detects stones, measures their size, and identifies hydronephrosis in a single radiation-free session.
- Stones under 5 mm typically pass without intervention; those above 10 mm almost always require a procedure.
- Ultrasound misses 12.5% of stones; CT is necessary when symptoms persist despite a normal USG result.
Quick Answer: A kidney ultrasound detects stones, measures size, checks for hydronephrosis, and assesses kidney health; no radiation required.
Quick Links

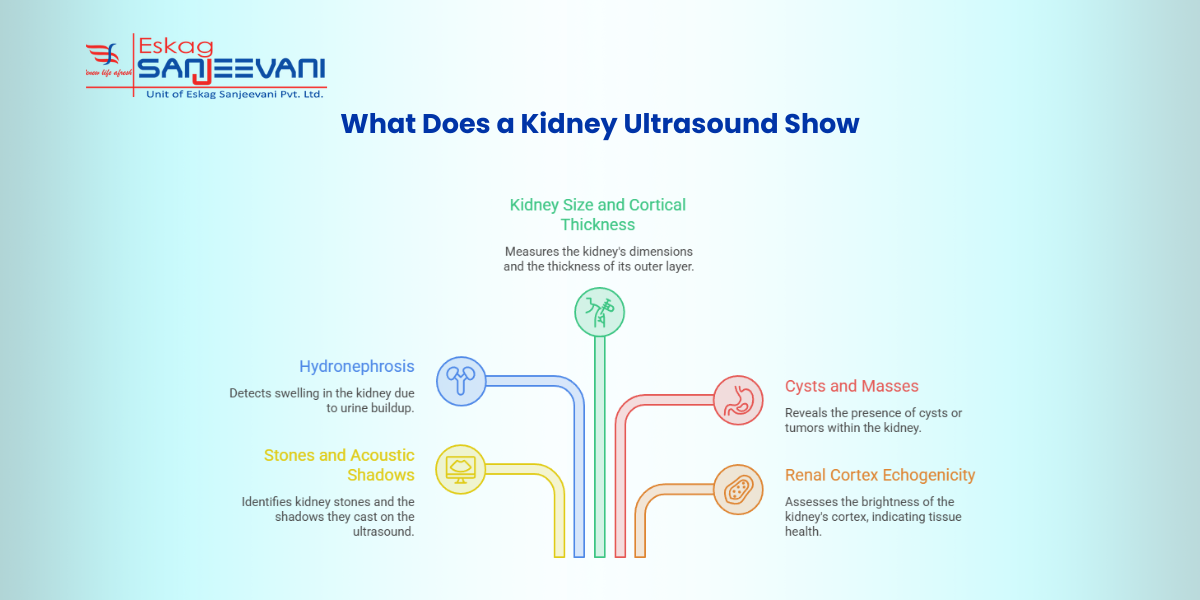

What Does a Kidney Ultrasound Actually Show?
A kidney ultrasound is the first imaging test doctors order for suspected renal problems, not just stones, but a full structural and functional assessment of both kidneys in one radiation-free session.
Stones and Acoustic Shadows
Kidney stones appear as bright hyperechoic spots with a dark acoustic shadow beneath them. That shadow is the defining signature; without it, a bright spot could be calcified tissue or a vessel wall rather than a true stone.
Hydronephrosis
When a stone or other obstruction blocks the flow of urine, the collecting system swells. Ultrasound grades this swelling, mild to severe, and its presence alongside pain is treated as an obstructing stone until proven otherwise.
Kidney Size and Cortical Thickness
A kidney ultrasound measures both kidneys longitudinally. Asymmetry greater than 1.5 cm between sides, or cortex thinner than 1 cm, signals parenchymal damage worth investigating further.
Cysts and Masses
Simple cysts, smooth, fluid-filled, with no internal echoes, are typically benign and monitored. Complex cysts with internal echoes or solid components require CT or MRI follow-up without delay.
Renal Cortex Echogenicity
A cortex that appears brighter than the adjacent liver is an early marker of parenchymal kidney disease, often detectable on ultrasound before creatinine levels rise in routine blood tests.
Can Ultrasound Detect Kidney Stones, and How Accurately?
The straightforward answer to whether an ultrasound test for the kidneys can detect stones is yes, but with important limitations that directly affect treatment decisions.
Ultrasound reliably identifies stones sitting in the renal pelvis and lower calyx. A 2024 cross-sectional study of 56 patients with suspected kidney stones found that ultrasound demonstrated excellent reliability for stone size measurement, with an intraclass correlation of 0.924 compared with CT, but still missed 12.5% of stones, particularly in the middle and upper calyx [1].
Where ultrasound consistently underperforms
- Mid-ureteral stones are obscured by overlying bowel gas; ultrasound cannot reliably image this segment at all.
- Upper and middle calyx stones are more frequently missed than lower pole stones due to their depth and overlapping structures.
- Size accuracy in the 5-10 mm range is problematic. Ultrasound significantly overestimates stone size; in 22% of cases, patients may be inappropriately counselled based on USG measurements alone [2].
When CT is ordered after a kidney ultrasound
- Hydronephrosis is present, but no stone is visible on USG
- Symptoms persist after a negative ultrasound result
- Uric acid stones are suspected; these are radiolucent and invisible on plain X-ray
- A kidney ultrasound starts the diagnostic process. Non-contrast CT KUB (NCCT) confirms it when findings are borderline or inconclusive.
Normal Kidney Size on Ultrasound: What the Numbers Mean
Most patients receive a USG report listing kidney dimensions in centimetres, with no explanation of whether those numbers are normal or concerning. This section decodes what a normal kidney size ultrasound report should show.
A landmark study of 665 adult volunteers found median renal lengths of 11.2 cm on the left and 10.9 cm on the right, with kidney size correlating most strongly with body height and total body area, not age alone [3].
Here’s a tabular representation to understand the measurements in a nutshell:
| Measurement | Normal Adult Range | Concern if Outside Range |
| Length (longitudinal) | 9–12 cm | <9 cm suggests CKD or scarring |
| Width (transverse) | 5–7 cm | Asymmetry between sides needs review |
| Cortical thickness | >1 cm | Thinning indicates parenchymal loss |
| Left vs right difference | Up to 1.5 cm | >1.5 cm may signal unilateral disease |
As a clinical rule, any renal length below 9 cm or asymmetry above 1.5 cm between sides warrants correlation with blood creatinine and urine protein before conclusions are drawn.
Kidney Stone Location: What It Tells Your Doctor About Treatment
Where a stone is sitting inside the urinary tract determines treatment far more than size alone. A 5 mm stone at the ureteropelvic junction behaves very differently from a 5 mm stone near the bladder.
In a study of 621 patients with urolithiasis in India, 67.4% had stones in the kidney itself, making renal stones the most commonly detected location on ultrasound across Indian clinical settings [4].
| Stone Location | USG Visibility | Typical Treatment Path |
| Renal pelvis/calyx | High | Observation <5 mm; ESWL or PCNL >10 mm |
| UPJ | Moderate | Ureteroscopy if obstructing |
| Mid-ureter | Low | NCCT KUB is required for confirmation |
| UVJ | Moderate–High | Most likely to pass spontaneously |
| Bladder | High | Cystoscopy |
Hydronephrosis above the obstruction, even without a directly visible stone, is a reliable indirect indicator that something is blocking urine flow and must be acted upon promptly.
When Ultrasound Alone Is Not Enough: and What Comes Next
A kidney ultrasound is the correct starting point for most renal complaints. It is not always the final answer before a treatment decision is made.
Four Situations That Consistently Require Additional Imaging
Stone in the 5-10 mm borderline range
This is the size where observation versus intervention is decided. Ultrasound often overestimates size in this range, so CT confirmation is clinically justified before any procedure is planned.
Persistent pain or haematuria with a negative ultrasound
A normal kidney ultrasound does not exclude a mid-ureteral stone. The mid-ureter is routinely obscured by bowel gas; a patient with ongoing symptoms needs NCCT KUB regardless of the USG result.
Hydronephrosis is visible, but no stone is located
The source of obstruction, stone, stricture, or external compression, needs to be localised on CT before treatment is planned.
Suspected uric acid stones
Uric acid stones are radiolucent. They are invisible on plain X-ray and can be subtle on ultrasound. CT urogram is required for definitive characterisation.
Also read: Ultrasound vs CT Scan: 5 Differences You Should Know.
Final Thoughts
A kidney ultrasound provides your doctor with significant clinical information, but acting on the findings promptly is equally important. If your scan shows a 5-10 mm stone, consult a urologist before symptoms worsen; this size range is when early intervention can change outcomes. A normal USG with persisting flank pain still warrants a non-contrast CT KUB; ultrasound cannot rule out mid-ureteral stones. Always bring previous scans to every follow-up; size progression over serial imaging carries as much weight as any single result.
At Eskag Sanjeevani Radiology centres, every renal USG is reported with structured clinical impressions, giving both doctor and patient a clear, actionable picture from the first scan.
References
- Abbas SK, Al-Omary TSS, Fawzi HA. Ultrasound accuracy in evaluating renal calculi in Maysan province. J Med Life. 2024 Feb;17(2):226-232.
- Ganesan V, De S, Greene D, Torricelli FC, Monga M. Accuracy of ultrasonography for renal stone detection and size determination: is it good enough for management decisions? BJU Int. 2017 Mar;119(3):464-469.
- Emamian, S.A., Nielsen, M.B., Pedersen, J.F. and Ytte, L. (1993). Kidney dimensions at sonography: Correlation with age, sex, and habitus in 665 adult volunteers. American journal of Roentgenology, 160(1), pp.83–86.
- Faridi, M. and Singh, K. (2020). Preliminary study of the prevalence of urolithiasis in a North-Eastern city of India. Journal of Family Medicine and Primary Care, 9(12), p.5939.
No. Ultrasound misses 12.5% of stones, particularly in the mid-ureter. Persistent symptoms after a normal USG warrant a non-contrast CT KUB.
Fast lightly for 4–6 hours beforehand to reduce gas in the bowel. Arrive with a comfortably full bladder for better imaging of the lower ureter and bladder.
It means urine is backing up inside your kidney due to a blockage. It requires prompt medical review; do not ignore this finding.
Yes. It uses no radiation and is the preferred first-line imaging for suspected kidney stones in pregnant patients at any trimester.
When the stone is 5–10 mm, mid-ureteral location is suspected, hydronephrosis has no visible cause, or symptoms persist despite a normal USG result.
